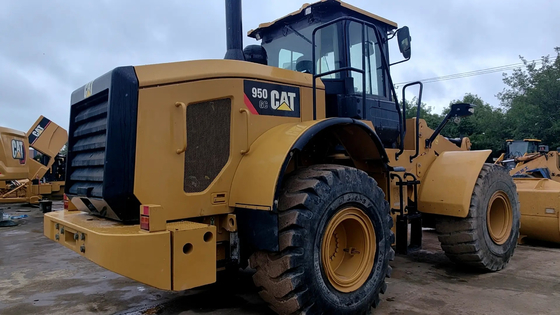

Capacity 3.6m3 Used Wheel Loader CAT950 High Efficiency For Movement

Second-hand CAT950 bucket capacity 2.7 loader, low price, high quality, original accessories.

Product Description

engine
Net power - ISO 9249
151kW
engine model
Cat® C7.1
Bore diameter
105mm
stroke
135mm
Displacement
7.01 L
Max Net Torque @ 1,300 rpm
931N·m
Max Gross Torque @ 1,400 rpm
1020N·m
Rated Gross Power @ 2,200 rpm – ISO 14396
168kW
Max Gross Power @ 2,000 rpm – ISO 14396
171kW
Rated Net Power @ 2,200 rpm – ISO 9249
151kW
weight
working weight
18676kg
Bucket
Bucket capacity
2.9 m3 to 3.6 m3 (3.8 yd3 to 4.7 yd3)
Job Specifications
Digging force
147kN
Note
*Full compliance to ISO (2007) 14397-1 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Note
**Compliance to ISO (2007) 14397-1 Sections 1 thru 5.
Static rollover load 40° full steering - rigid tires**
11197kg

Static tipping load 40° full steering - ISO 14397-1*
10503kg
gearbox
Forward 1 gear
7km/h
Forward 2 gears
12.5km/h
Forward 3 gears
22km/h
Forward 4 gears
34km/h
Reverse 1 gear
7km/h
Reverse 2 gears
12.5km/h
Reverse 3 gears
22km/h
Hydraulic system
Steering system pump type
Piston
Hydraulic Cycle Times - Lower, No Load and Float Lower
2.8 Seconds
Implement System Pump Type
Piston
Implement System – Optional 3rd Function Maximum Pressure @ 70 L/min
20680kPa
Implement System – Maximum Operating Pressure @ 50 ± 1.5 L/min
27900 kPa
Hydraulic Cycle Time – Total Cycle Time
10.1 Seconds
Implement System – Maximum Pump Output @ 2,200 rpm
248L/min
Hydraulic Cycle Time - Unloading at Maximum Lift Position
1.2 Seconds
Hydraulic cycle time - lifting from carrying position
6.1 Seconds
Implement System - Optional tertiary function maximum flow
280L/min
brake
brake
Meet SAE J1473 OCT90 and ISO 3450-1985 required standards
tire
Choices
Choices include: 23.5-25 16PR, L3 (Triangle); 23.5R25 ★★, L3 (Triangle); 23.5R25 ★, L3 (Bridgestone)
cab
Anti-roll protection structure/anti-falling object protection structure
Meets SAE and ISO standards

Cat cab with a four post integrated Rollover Protective Structure (ROPS) are standard.
ROPS
ROPS meets SAE J1040 APR88 and ISO 3471:1994 criteria.
FOPS
Falling Objects Protective Structure (FOPS) meets SAE J231 JAN81 and ISO:1992 Level II criteria.
Maintenance and filling capacity
cooling system
48L
Crankcase
20L
gearbox
45L
Differentials and Final Drives - Front Axle
40L
Differentials and Final Drives - Rear Axle
38L
Hydraulic tank
120L
Fuel Tank Size
290 L
size
B-Pin Height
4188 mm
Lift Arm Clearance
3649mm
B-Pin Height @ Carry
655 mm
Height to the top of the rollover protective structure
3458mm
Height to top of exhaust pipe
3596 mm
Height to top of hood
2568 mm
Ground clearance
460mm
Centerline of rear axle to edge of counterweight
2001 mm
Wheelbase
3300 mm
Rear axle centerline to hinge
1650mm
Bracket rear angle in maximum lift position
60 Degrees
Unloading angle at maximum lifting position
52 Degrees
Caster angle in carrying position
45 Degrees
Stand back angle when in ground position
40 Degrees
Height to axle centerline
750mm
Turning Radius
Turning Radius to Outside Edge of Counterweight
6190mm
Turning Radius to Inside of Tires
3419mm
Width Over Tires
2745mm
Turning Radius to Outside of Tires
6164mm

Packaging and shipping

1. Containers are the cheapest and fastest

2. Bulk carriers are better for large construction equipment

3. Flat rack is better for large construction equipment and does not need to be disassembled

4.RoRo ships are fast and good for all kinds of machines
You can choose any transportation according to your needs

5. FOB, CRF and CIF are all acceptable.
We can ship the machine in bulk as a whole, or we can load it in a container and disassemble it on some parts of the machine, or we can ship it on a flat rack. We can choose the way according to your requirements.
Packaging details: Packaging will be as per customer requirements
Delivery time: 2 working days
Experienced international trade team provides the best full set of services

our service

1) Original parts and good working condition;
2) Low working hours and high work efficiency;
3) Strong work motivation and good stability;
4) Complete accessories and no oil leakage;
5) Competitive price and good skills;
6) Good after-sales service
We hope you can give us the opportunity to negotiate with you by email or phone, or come to Shanghai face to face, we are honored to contact you and serve you, and we promise to provide you with the best prices and services:
1) Book a hotel for you
2) Pick you up at the airport
3) Freely translate for you and guide you when you are free
4) 6 months to 1 year product and after-sales service warranty

have professional staff to search for the cheapest and best machines from all over China. Besides, we have skilled workers to
refine old machines if you need. You are very welcome to come here and inspect by yourselves. Your satisfaction is our priority.
If you are interested in any of our used construction machinery, please feel free to contact us.
