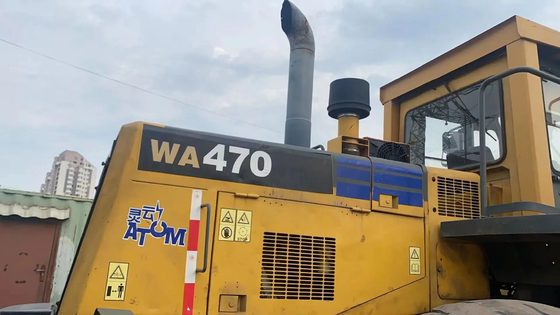

KOMATSU470 Second Hand Wheel Loaders WA4708M0 Model 5.20m3 Bucket Capacity

Product Details

Place of Origin: China

Brand Name: KOMATSU470

Certification: ISO9001

Model Number: KOMATSU470

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: US$5000~US$35000

Packaging Details: Standard export packaging

Delivery Time: 3-5weeks

Payment Terms: D/P, D/A, L/C, T/T

Supply Ability: 100 units +3weeks

Get Best Price
Product Details
High Light:

KOMATSU470 Second Hand Wheel Loaders

,

WA4708M0 Model Second Hand Wheel Loaders

,

5.20m3 Bucket Capacity Used Wheeled Loader

Model:
WA470-8M0
Total Power:
204 / 277 KW / PS
Bucket Capacity:
3.60~5.20m³
The Three Sums Of Working Equipment (Lifting, Unloading, Lowering):
10.1s
Working Weight:
23900~24550kg
Tipping Load (at Maximum Bending):
14870~17360kg
Minimum Turning Radius (center Of Outside Tire):
6630mm
45 Degree Tilt Height Shovel Teeth:
2990-3235mm
45 Degree Tilt Distance:
1185-1410mm
Overall Length (bucket On The Ground):
8755-9085mm
Total Height:
3500
Model:
WA470-8M0
Total Power:
204 / 277 KW / PS
Bucket Capacity:
3.60~5.20m³
The Three Sums Of Working Equipment (Lifting, Unloading, Lowering):
10.1s
Working Weight:
23900~24550kg
Tipping Load (at Maximum Bending):
14870~17360kg
Minimum Turning Radius (center Of Outside Tire):
6630mm
45 Degree Tilt Height Shovel Teeth:
2990-3235mm
45 Degree Tilt Distance:
1185-1410mm
Overall Length (bucket On The Ground):
8755-9085mm
Total Height:
3500
Product Description

Second-hand KOMATSU470 is cheap, excellent quality and low price model WA470-8M0 total power 204 / 277 kW / PS
Product Description

Wheelbase2300mm
Wheelbase3450mm
modelSAA6D125E-7
Rated speed2000 min-1
Displacement11.04 L


Wet multi-disc brakes and fully hydraulic braking system
Significantly reduces maintenance costs and increases reliability. Wet disc brake
It adopts a fully sealed design to prevent foreign matter from entering, thus effectively reducing wear and tear.
damage and reduce the resulting maintenance costs. The brakes require no wear adjustment,
Maintenance costs can thus be further reduced. In addition, the new parking brake also adopts
An adjustment-free design is used to improve reliability and extend service life.
The braking system adopts the design of two independent hydraulic circuits to improve reliability.
One step up. When one of the loops fails, the other loop will function.
In addition, fully hydraulic brakes do not have an air system that requires bleeding operations.
There is also no condensation that can cause contamination, corrosion and freezing.
Flat Type 0 Seal
To ensure that the hydraulic hose connection is
By sealing and preventing oil leakage, the loading
The machine adopts a flat O-shaped ring for the end face
Seals. In addition, fully hydraulic cylinders
A buffer ring is installed on the side of the cylinder head to reduce
The load on the piston rod seal is low, from
And improve reliability.

Truck CraneKATONK200E, NK250E, NK300E, NK400E, NK500E, NK800E, NK1000, NK1200, NK1200E
 TADANOTG250, TL250, TL250E, TL300E, TG300E, TG350E, TG450E, GT550E, TG550E, TG650E, GT650E,
Rough terrain CraneKATOKR25H, KR45H, KA300, SS500.KR250E, KR450
 TADANOKR250E,KR350E, TR250M, TR300M, AZ300D, AR350, TR450E, TR500M
Crawler CraneHITACHIKH700, KH120T, KH125, KH150, KH180
 KOBELCO50T, 100T, 120T, 300T
 SUMITOMO50T, 100T, 200T
ExcavatorHitachiEX100, EX100WD, EX120, EX200, EX200LC, EX220, EX300, EX350, EX450, ZX70, ZX120, ZX150
 Caterpillar200, 235, 305, 307, 312, 320, 330, 324, 325, 345 (From Model B to Model D)
 KomatsuPC50, PC60, PC100, PC120, PC130, PC200, PC210, PC220, PC300, PC350, PC400, PC450
 KobelcoSK100, SK120, SK200, SK350
 DaewooDH55, 60, 130, 150, 220, 225, 300
 Hyundai130w, 150w, 200, 210, 220, 225, 290, 305
 VolvoEC210, 240, 290,360,460,700
LoaderCaterpillar916, 924, 928, 936, 938, 950, 966, 980, 988 (From Model C to Model H)
 KomatsuWA100, 230, 250, 300, 320, 350, 360, 380, 400, 430, 470
 Kawasaki70, 70B, 80Z, 85Z, 90, 90Z, 95Z
 Backhoe LoaderJCB3CX, JCB4CX, CAT416,CAT428
BulldozerCaterpillarD6D, D6H, D6R, D6G, D7H, D7G, D7R, D8K, D8R, D8N, D8L, D9N, D9R, D10N
 KomatsuD50P, D60P, D65, D85, D155
Motor GraderCaterpillar12G, 14G, 120G, 140G, 16G, 140H, 160H, 140K
 KomatsuGD511A, 605A, 623

KOMATSU470 Second Hand Wheel Loaders WA4708M0 Model 5.20m3 Bucket Capacity 0
KOMATSU470 Second Hand Wheel Loaders WA4708M0 Model 5.20m3 Bucket Capacity 1KOMATSU470 Second Hand Wheel Loaders WA4708M0 Model 5.20m3 Bucket Capacity 2KOMATSU470 Second Hand Wheel Loaders WA4708M0 Model 5.20m3 Bucket Capacity 3KOMATSU470 Second Hand Wheel Loaders WA4708M0 Model 5.20m3 Bucket Capacity 4KOMATSU470 Second Hand Wheel Loaders WA4708M0 Model 5.20m3 Bucket Capacity 5KOMATSU470 Second Hand Wheel Loaders WA4708M0 Model 5.20m3 Bucket Capacity 6KOMATSU470 Second Hand Wheel Loaders WA4708M0 Model 5.20m3 Bucket Capacity 7KOMATSU470 Second Hand Wheel Loaders WA4708M0 Model 5.20m3 Bucket Capacity 8KOMATSU470 Second Hand Wheel Loaders WA4708M0 Model 5.20m3 Bucket Capacity 9KOMATSU470 Second Hand Wheel Loaders WA4708M0 Model 5.20m3 Bucket Capacity 10
Packaging and shipping
1. Containers are the cheapest and fastest
2. Bulk carriers are better for large construction equipment
3. Flat rack is better for large construction equipment and does not need to be disassembled
4.RoRo ships are fast and good for all kinds of machines
You can choose any transportation according to your needs
5. FOB, CRF and CIF are all acceptable.
We can ship the machine in bulk as a whole, or we can load it in a container and disassemble it on some parts of the machine, or we can ship it on a flat rack. We can choose the way according to your requirements.
Packaging details: Packaging will be as per customer requirements
Delivery time: 2 working days
Experienced international trade team provides the best full set of services


our service
1) Original parts and good working condition;
2) Low working hours and high work efficiency;
3) Strong work motivation and good stability;
4) Complete accessories and no oil leakage;
5) Competitive price and good skills;
6) Good after-sales service
We hope you can give us the opportunity to negotiate with you by email or phone, or come to Shanghai face to face, we are honored to contact you and serve you, and we promise to provide you with the best prices and services:
1) Book a hotel for you
2) Pick you up at the airport
3) Freely translate for you and guide you when you are free
4) 6 months to 1 year product and after-sales service warranty
We can assure you of the quality of our used construction machinery and provide you with the most competitive price since we
have professional staff to search for the cheapest and best machines from all over China. Besides, we have skilled workers to
refine old machines if you need. You are very welcome to come here and inspect by yourselves. Your satisfaction is our priority.
If you are interested in any of our used construction machinery, please feel free to contact us.
KOMATSU470 Second Hand Wheel Loaders WA4708M0 Model 5.20m3 Bucket Capacity 11
KOMATSU470 Second Hand Wheel Loaders WA4708M0 Model 5.20m3 Bucket Capacity 12
KOMATSU470 Second Hand Wheel Loaders WA4708M0 Model 5.20m3 Bucket Capacity 13
KOMATSU470 Second Hand Wheel Loaders WA4708M0 Model 5.20m3 Bucket Capacity 14
1. How to guarantee the condition and lifetime of the machine ?
A: We choose good condtion and less hour used machines. We are available for third part certificate of all of the machines.
And they are all available for your inspection in its place.

2. How to have after sale service from us ?
A: We have old suppliers in China, used or new parts are available for us to get, with reasonable price and in short time.

3. How can customers make visit and checking in China ?
A: We arrange everything ready for your jouney in China, welcome your happy visit!~
